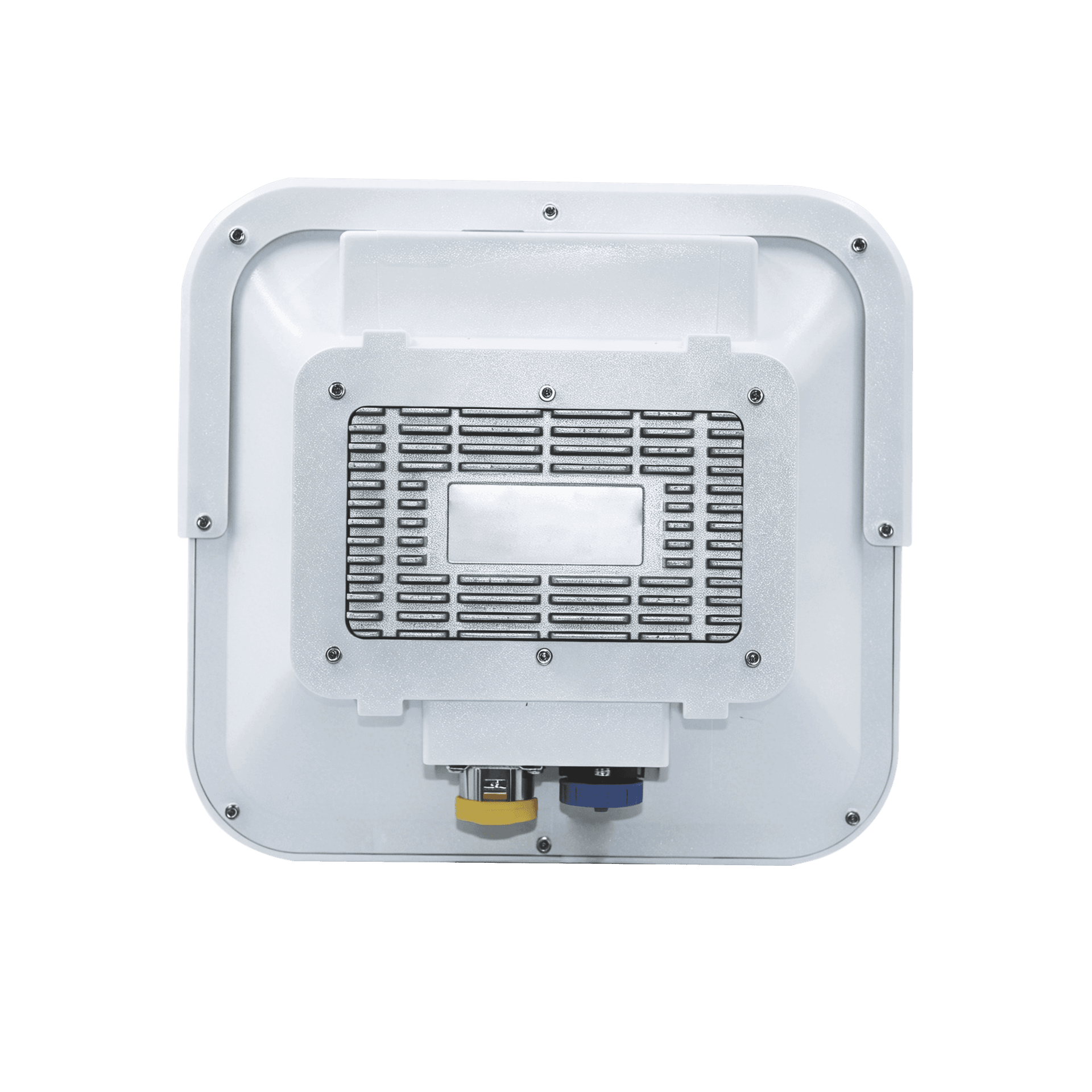

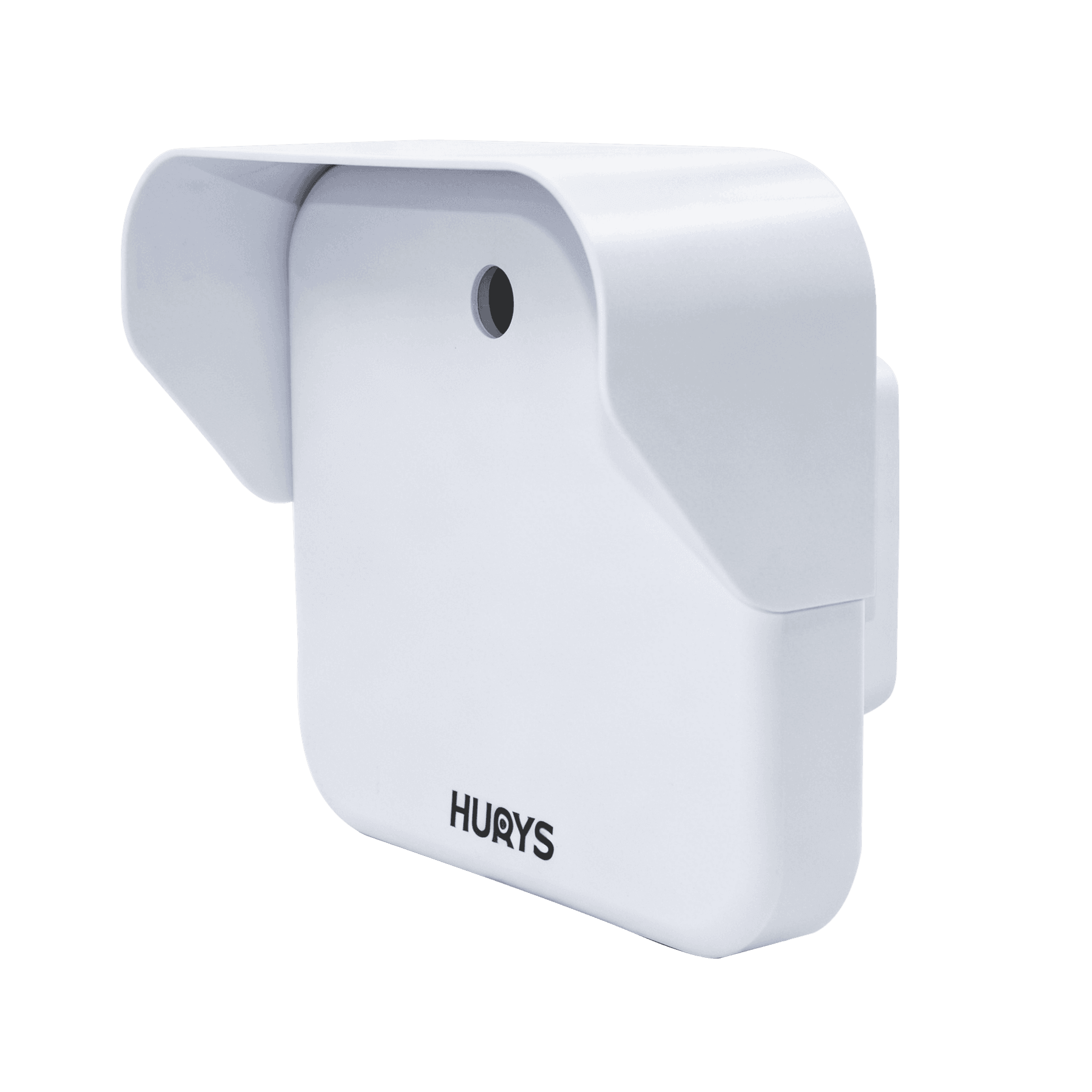

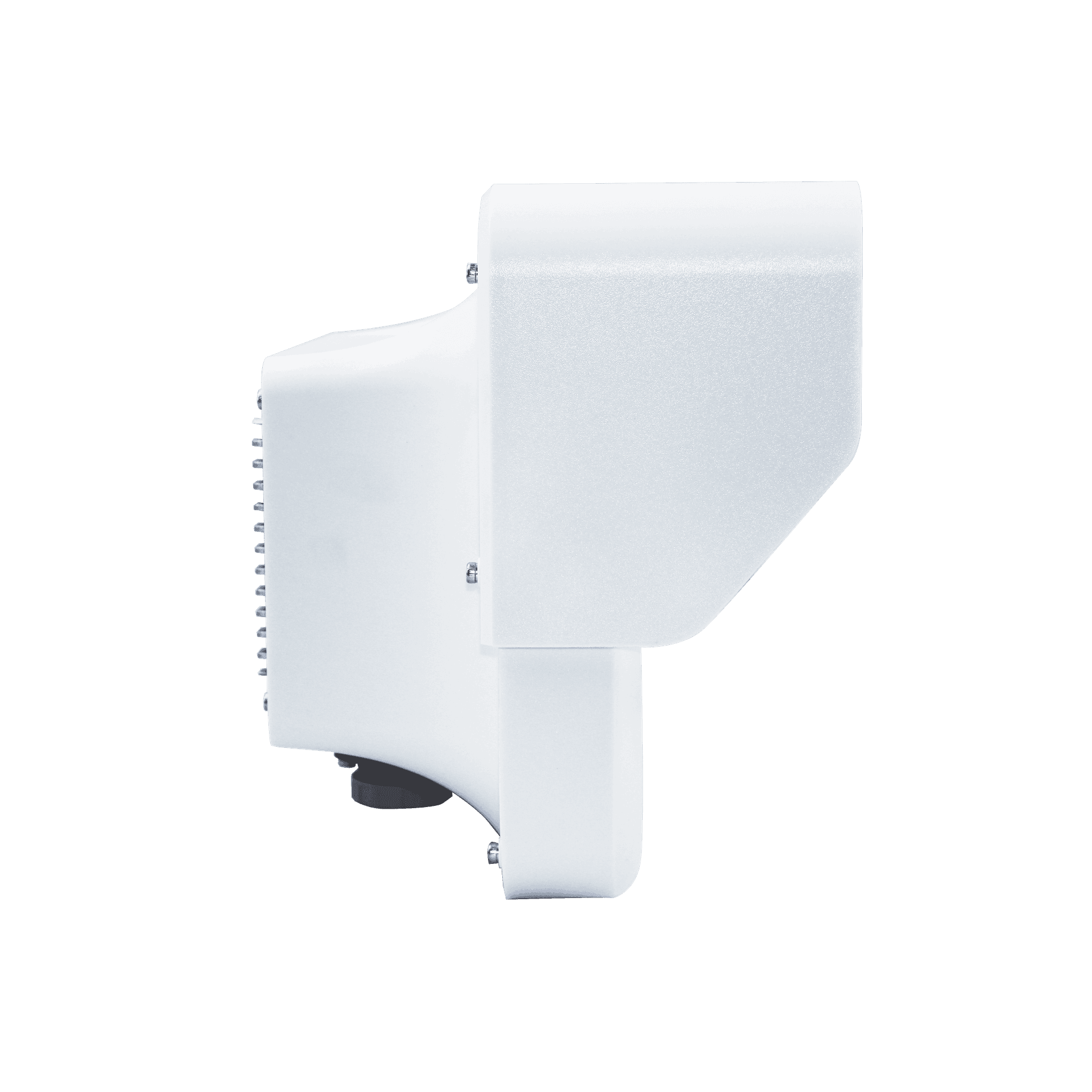

Long-Range Detector

DTAM D29-V/260m

260m Holographic Detection Radar

Integrated radar-video fusion for 8 lanes up to 260m.
Provides traditional microwave data: speed, volume, headway, classification, queue, occupancy.
High accuracy: flow ≥95%, queue & event ≥90%.
Detects pedestrians, non-motor vehicles, and all vehicle types.
All-weather operation unaffected by rain, snow, fog, or light; supports NTP time sync.

Wide area multi-target detectionHolographic multi-dimensional perceptionMulti-sensor fusion Multi-target radarHigh-precision

SpecificationResources

Basic Parameters

Serial No.	Parameter Item	Specification
1	Detection range	25m ~ 260m
2	Range accuracy	0.4m
3	Coverage	8 lanes
4	Simultaneous detection	Up to 256 objects
5	Refresh time	50ms
6	Interval of velocity	-200km/h ~ 200km/h
7	Speed accuracy	0.1m/s
8	Speed Separation	≤±0.25m/s
9	Operating frequency	80GHz
10	Classification	Large vehicles, small vehicles, non-motor vehicles, and pedestrians
11	Statistical data	Traffic volume, queue length, occupancy status, average speed, etc.

Environmental Parameters

Video Parameters

General Parameters
